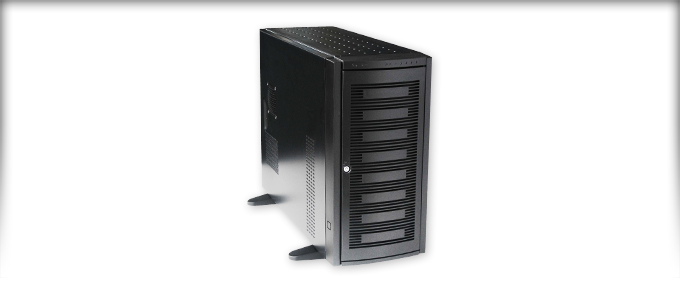

SC-9008-Black
w/ Single or Redundant PSU |
 |
|
Features :
|
|
-
Multifunction: Server Case & 19" Rack Mount, Storage Enclosure
-
Possible convertible to 5U 19" Rack
-
Side panel design
-
Save Labor Cost
-
Excellent Flexibility & Expandability
-
Elegant Outlook Rear panel design
-
Thumb-screw for facilitate maintains
-
Excellent Thermal Solution
-
Optional extra cooling fan (8cm) x 2
-
LED Display: Power Fail HDD w/o opening door
-
Ventilation holes in the front and back
-
Metal shielding to reduce EMI
-
Meet FCC & CE Requirement
-
Optional CE components to reduce EMI
|
Specifications :
|
|
Model |
SC-9008 black |
|
|
Case Type |
Mini-Server or 5U 19''Rack Mount |
|
|
M/B Type |
ATX (12’’x10’’) / Extended ATX (12’’x13’’) |
|
|
Power Supply ( Optional) |
Singel P/S: 400W/460W/550W
Redundant: 2x400W, 2x500W ( mini-redundant)
|
|
|
Front Panel Material |
ABS Plastic |
|
|
Chassis Material |
SECC |
|
|
Chassis Plate Thickness |
1 mm |
|
|
Drive Bays External |
5.25''x 8, 3.5''x 1 |
|
|
Expansion Slots |
7 |
|
|
Second Fan |
120 mm fan in the rear / 8cm x 2 ( optional ) |
|
|
LED Display |
Power, Fail, HDD |
|
|
Front Door Keylock |
1 |
|
|
Dimensions (W*D*H) |
220 x 600 x 450mm |
|
|
Weight |
N.W.9.5 kgs, G.W.10 kgs |
|
|
|
|
|
|
|
|
