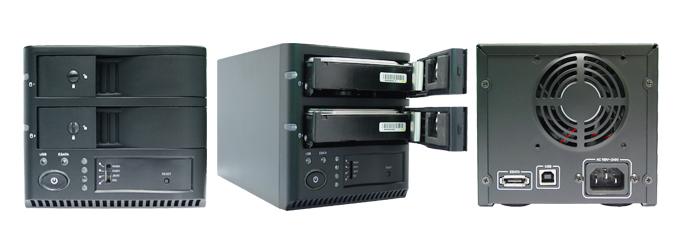

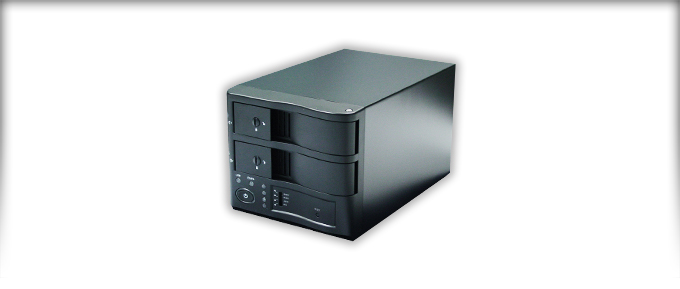

Easy Storage Management with 2 Bays RAID System for 3.5" SATA HD via e-SATA or USB2.0
Features :
|
|
-
Supports 3,5" SATA-II & SATA-I compliant HDDs
-
Provides Striping (RAID 0), Spanning, Mirroring (RAID 1) and JBOD RAID Modes
-
Simplifies RAID mode changes via onboard RAID mode switch
-
Requires no RAID software installation
-
Achieves fastest performance via Striping Mode
-
Ensures data integrity with redundant backup capability
-
Supports automatic rebuild in Mirroring mode
-
Communicates system status via LED indicators
-
Dissipates heat effectively w/ aluminium housing
-
Build in internal 70 mm Silent fan for maximum air flow
-
Enables HDD hot-swaps with quick release levers to eject the HDD
-
Supports hot-plug and HDD hot-swap
-
Connects easily via eSATA and USB2.0
-
Internal Power Supply
|
Specifications :
|
|
Model |
SI-1328RUS |
|
|
Interface |
eSATA / USB2.0 |
|
|
HDD Support |
3,5" SATA HDD ( identical HDD recommended ) |
|
|
RAID Level |
Striping ( RAID 0 ) |
|
|
|
Spanning ( RAID 1 ) |
|
|
|
JBOD / BIG |
|
|
Data Transfer Speed |
eSATA : up to 3000 Mb/sec |
|
|
|
USB2.0 : up to 480 Mb/sec |
|
|
LED Indicators |
Power ON / Power OFF / Access / Rebuild / Error |
|
|
Power Supply |
Input : AC90-264 V |
|
|
|
Output : DC+12V/2A, +5V / 2A |
|
|
Dimension |
210 D x 130 W x 117 H mm |
|
|
Weight ( no HD) |
925 g |
|
|
Package include |
2 Byas RAID system |
|
|
|
eSATA Cable |
|
|
|
USB type B to A cable |
|
|
|
AC Adapter |
|
|
|
Manual
|
|
|
|
Screws x8 |
|
|
System Requirements |
PC: 266 MHz or faster CPU ( 800 MHz for Window Vista) |
|
|
|
Microsoft Windows 98/ME/2000, XP, Window Vista |
|
|
|
Mac OS 10.2 or higher / Mac OS X 10.4 ( Intel Core Duo) |
|
