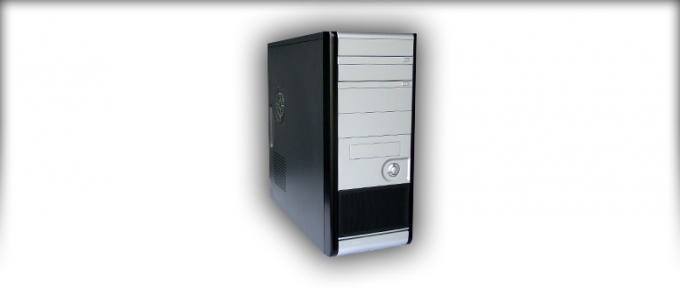

Cost Effective & Thermal advantaged Tower Case with front USB, MIC and SPK
Features :
|
|
-

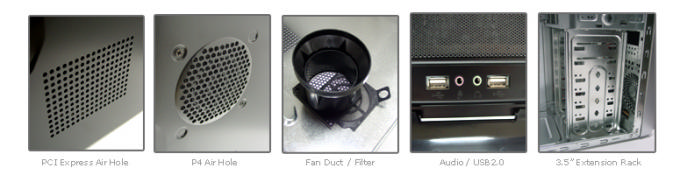

Meet Intel thermal requirement with side venting & air duct
-

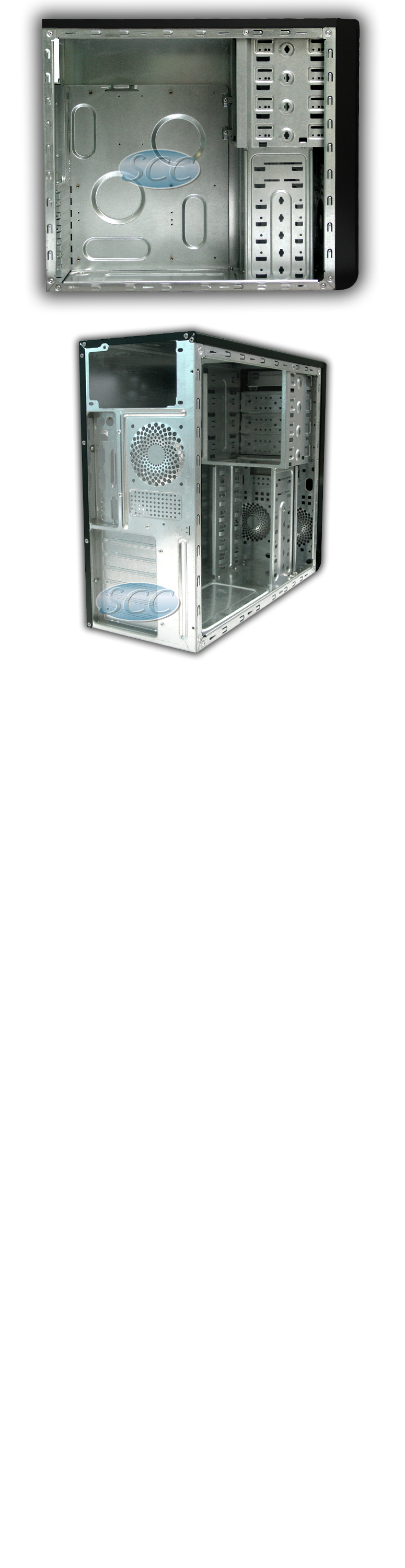

3-pieces design covers for easy assemply
-
Thumb Screw design fro side cover
-
Front dual USB 2.0 / MIC / SPK
-
Push-open CD-ROM door
|
Specifications :
|
|
Model |
TB-605 Tokina |
|
|
Case Type |
Midi-Tower |
|
|
M/B Type |
ATX / Micro ATX |
|
|
Power Supply |
Optional PSU |
|
|
Drive Space External |
5.25''x 4, 3.5''x 1 |
|
|
Drive Space Internal |
3.5''x 5 |
|
|
Front Panel Switches |
Power, Reset |
|
|
Front Panel LEDs |
Power, HDD |
|
|
Front Panel Connect |
USB 2.0 port x 2 audio MIC |
|
|
Cooling fan ( Option) |
Front: 2x 80 mm / Rear : 1x 80 mm |
|
|
Chassis Material |
SECC 0.6 mm thickness |
|
|
Expansion Slots |
7 |
|
|
Front I/O |
2x USB, MIC , SPK |
|
|
Dimensions (D*W*H) |
470 x 170 x 410mm |
|
|
Weight |
N.W : 6.81 Kgs, G.W : 8.07 Kgs |
|
